"Flames" from converting Member's Mark BBQ Grill from LP->NG

Last Updated May 20, 2004. Shown below are a variety of pictures I took during the Member's Mark BBQ Grill conversion from LP (propane) to Natural Gas (NG). I think visually looking at flames (at night) is helpful in determining if you have clean combustion and also if you are at risk for a flame out - but I'm not sure how good an indicator of BTU output it is. BTW, I would often blow on a burner to see how it responded when I was tuning the LOW settings as my "test" to make sure it would not flame out; your mileage may vary and that isn't too scientific! ;-) Note that the photographed flame size/appearance/etc. was very dependant on the exposure time (especially when I re-hooked up the LP after drilling things out) ... but if nothing else, these are kinda cool to look at.

Back to main BBQ Grill page - © 2002-2004 www.komar.org


Main burner using LP at HIGH before drilling out - i.e. stock
bbq grill flames 1


Another picture of main burner using LP at HIGH before drilling out - i.e. stock
bbq grill flames 2

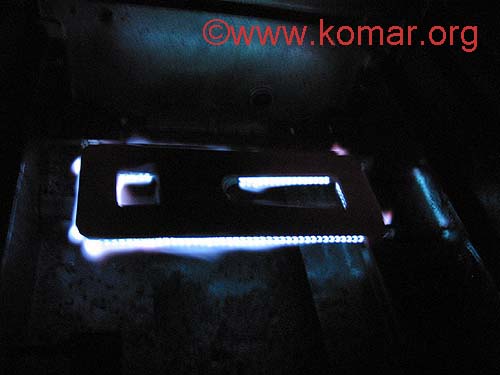

Main burner using LP at LOW before drilling out - i.e. stock
bbq grill flames 3


Main burner using NG at LOW before drilling out - flame is VERY weak as expected
bbq grill flames 4


Main burner using NG at HIGH after drilling out - pretty decent blue.
bbq grill flames 5


Main burner using LP at HIGH after drilling out - lotsa flame as expected
bbq grill flames 6


Main burner using LP at LOW after drilling out - not so low, eh?!?
bbq grill flames 7


All 3 main burners using NG at HIGH after drilling out - pretty blue
bbq grill flames 8


Another picture of all 3 main burners using NG at HIGH after drilling out - tad bit of yellow
bbq grill flames 9


All 3 main burners using NG at LOW after drilling out
bbq grill flames a


All 3 main burners using LP at HIGH after drilling out - FIRE!
bbq grill flames b


Another picture of all 3 main burners using LP at HIGH after drilling out - FIRE!
bbq grill flames c


All 3 main burners using LP at LOW after drilling out - not so low ...
bbq grill flames d


Back Burner using LP at ON before drilling out - i.e. stock
bbq grill flames e


Another picture of Back Burner using LP at ON before drilling out - camera exposure makes a difference!
bbq grill flames f


Back Burner using NG at HIGH after drilling out
bbq grill flames g


Back Burner using NG at LOW after drilling out
bbq grill flames h


Back Burner using LP at HIGH after drilling out - do a chicken-on-a-spit in 15 minutes! ;-)
bbq grill flames i


Side Burner using NG at HIGH after drilling out
bbq grill flames j


Side Burner using LP at HIGH after drilling out
bbq grill flames k


Side Burner using LP at LOW after drilling out
bbq grill flames l
